Name: Building Material Burning or Decomposition Smoke Density Test Apparatus
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF011
Price: 25,000.00 USD
Availability: InStock

Домой > продукты > Оборудование для испытаний воспламеняемости >

Building Material Burning or Decomposition Smoke Density Test Apparatus

smoke density test apparatus for building materials

flammability testing equipment with smoke analysis

building material decomposition smoke tester

Place of Origin:

China

Фирменное наименование:

YUYANG

Сертификация:

Model Number:

YYF011

Свяжитесь с нами

Спросите цитату

Building Material Burning or Decomposition Smoke Density Test Apparatus

Подробная информация о продукции

Gas source:

95% propane gas, or gas of the same purity (customer-supplied)

Smoke density measurement range:

0~100%

Smoke density measurement accuracy:

± 3%

Focal length after treatment:

60~65 mm

Main burner working pressure:

276 KPa (adjustable)

Auxiliary burner pressure:

138KPa (adjustable)

Overall dimensions:

L810 x W490 x H900 (mm)

Working power supply:

AC220 V, 50 Hz; total power: 500 W

HS CODE:

9031809090

PC:

Not included

Выделить:

smoke density test apparatus for building materials

flammability testing equipment with smoke analysis

building material decomposition smoke tester

Условия оплаты и доставки

СОБЩЕННЫЕ ПРОДУКТЫ

ASTM E648 Flooring Radiant Heat Flux Test Apparatus

Лучшая цена

Building Material Burning or Decomposition Smoke Density Test Apparatus

Лучшая цена

45 Degree Automatic Flammability Test Apparatus

Лучшая цена

Видео

ISO11925 Flammability Testing Furnace Equipment for Evaluating Building Materials' Fire Retardant Properties

Лучшая цена

Свяжитесь с нами

86-769-26622869

Свяжитесь сейчас

Описание продукта

Building Material Burning or Decomposition Smoke Density Test Apparatus

Product Specifications

Attribute	Value
Gas source	95% propane gas, or gas of the same purity (customer-supplied)
Smoke density measurement range	0~100%
Smoke density measurement accuracy	± 3%
Focal length after treatment	60~65 mm
Main burner working pressure	276 KPa (adjustable)
Auxiliary burner pressure	138KPa (adjustable)
Overall dimensions	L810 x W490 x H900 (mm)
Working power supply	AC220 V, 50 Hz; total power: 500 W
HS CODE	9031809090
PC	Not included

Product Description

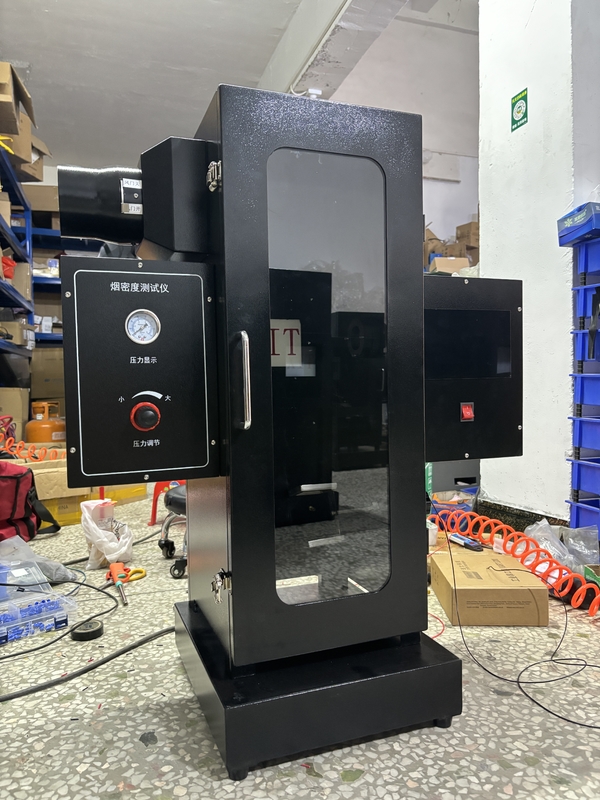

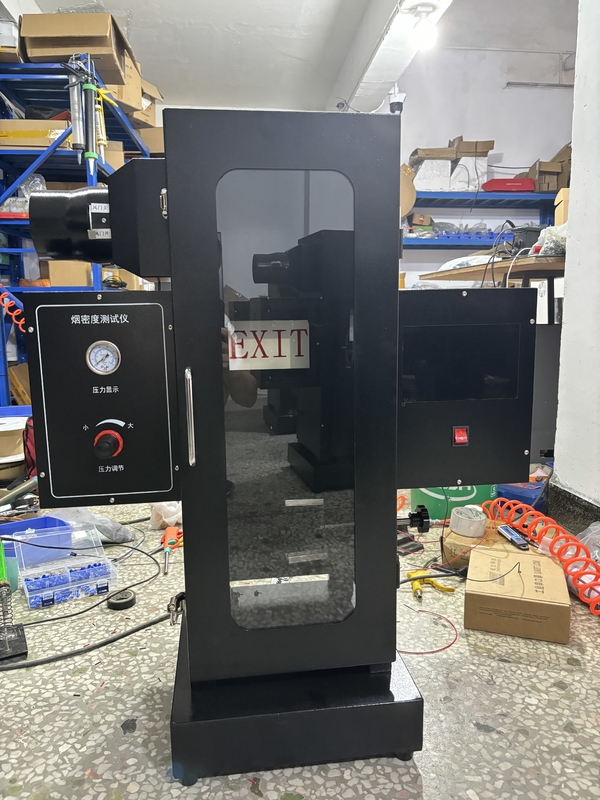

The Building Material Burning or Decomposition Smoke Density Test Apparatus is designed for determining static smoke content when building materials and other solid materials are burned.

Applications

It is applicable to the determination of static smoke content when building materials and its products are burned. It can also be used for the determination of static smoke content when other solid materials are burned.

Standards Compliance

Meets GB/T8627, ASTM D2843 standard requirements.

Technical Parameters

Gas source	95% propane gas, or gas of the same purity (customer-supplied)
Burning lamp	Length: 260mm, nozzle diameter: 0.13mm, 45° angle with smoke case
Photoelectric system	15W bulb light source, 6V working voltage
Exhaust system	Equipped with powerful exhaust fan for post-test ventilation
Receiver	Silicon photocell with 0-100% light transmittance range
Function	Automatic timing, ignition, smoke exhaust; luminous flux auto-correction
Computer control	Includes light transmittance measurement software with curve report output

Equipment Structure

Consists of combustion box and computer control system
Burning chamber dimensions: L300 x W300 x H790 (mm)
Combustion box made of high-quality non-steel plate, CNC machined
Internal components made of high-quality stainless steel for excellent rust resistance

Operating Conditions

Flat, well-ventilated area free of flammable/explosive/corrosive gases
No strong electromagnetic radiation sources nearby
Adequate maintenance space around equipment
Temperature: 25℃ ~ 35℃
Power supply: AC220V/50HZ with ±10% voltage fluctuation allowance
Frequency allowance: 50Hz±1%
Requires dedicated air/power switch of appropriate capacity

Key Features

Dual control mode (touch screen or computer)

Multiple computers can operate one device simultaneously with LAN sharing

Automatic rotation and precise positioning of main/auxiliary burners

Custom control programs for comprehensive test operations and reporting
