ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Место происхождения:

Гуандун, Китай

Фирменное наименование:

YUYANG

Сертификация:

CE

Номер модели:

ГГФ008

Свяжитесь с нами
Спросите цитату
Подробная информация о продукции
Диапазон плотности теплового потока:
0-15 кВт/м2
Точность теплового потока:
± 0,2 КВт/м2
Скорость выхлопа:
2,5±0,2 м/с
Высота пламени:
60-120 мм регулируемый
Система зажигания:
Высоковольтная электроника
Скорость потока газа:
0,026±0,002 л/с
Общая мощность:
2кВт
Источник питания:
AC 220V, 50 Гц
Лучистый поток энергии:
1,1-10,9 кВт/м2
Диапазон измерителя теплового потока:
0-50 кВт/м2
Эмиссивность поверхности:
ε=0,95±0,05
Рабочее напряжение:
230 В, 10 А
Рабочая температура:
от 10°C до 35°C
Угол излучающей панели:
30º
Поставка газа:
Пропан и воздушный компрессор
Выделить:

ISO 9239-1 flooring radiant heat tester

,

ASTM E 846 flammability test machine

,

radiant heat flux test apparatus

Условия оплаты и доставки
Количество мин заказа
1
Описание продукта
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus
This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.
Product Overview
The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.
This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.
Compliance Standards
• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy
Key Features
  • Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
  • Stainless steel sample support assembly on sliding platform for safe and easy sample loading

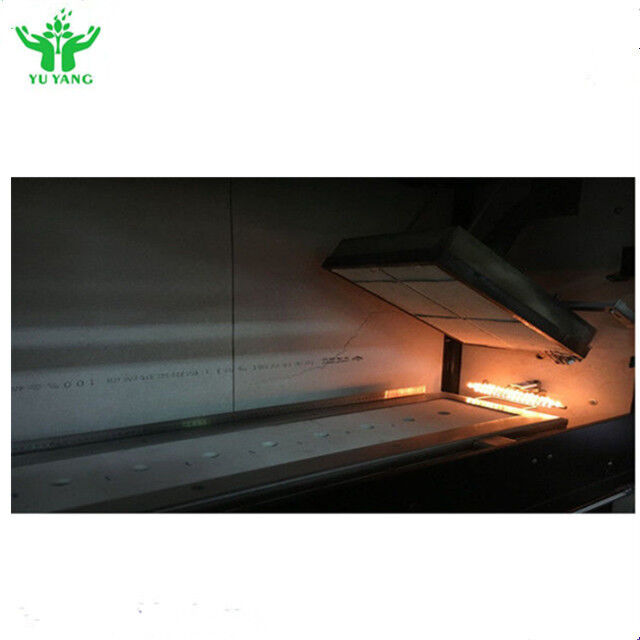

  • Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
  • Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
  • Dummy calibration specimen with holder and calibrated heat flux meter
  • Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
  • Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
  • Integrated smoke measuring system according to DIN 50055

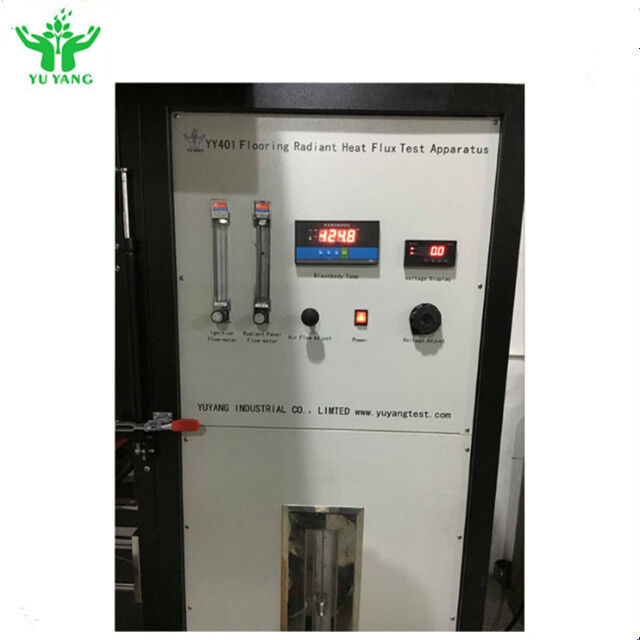

  • Control rack for convenient observation and operation during setup and calibration
  • Automatic ignition of radiant panel with safety cut-out
  • Automatic moving T-type ignition burner
  • Stainless steel hood with smoke measurement ports
Installation Requirements
Parameter Specification
Electrical 230 volts Nominal, 10 Amps
Ambient Temperature Operating range: 10°C to 35°C
Gas Supplies Propane and air compressor
Product Images

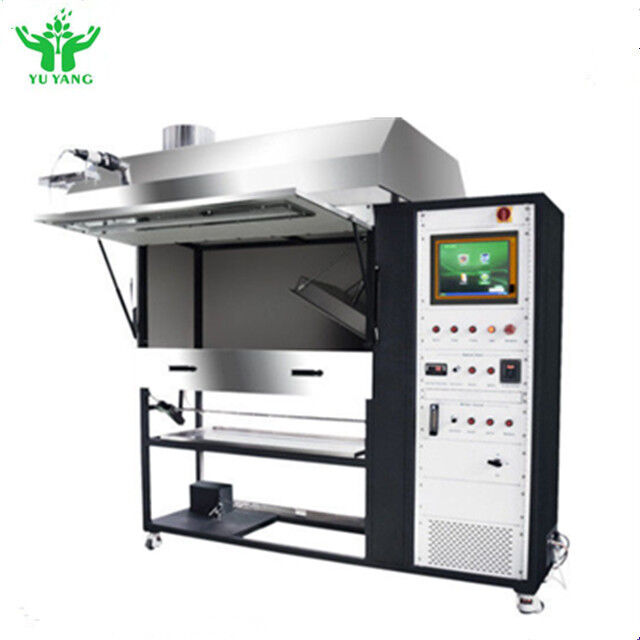

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 0

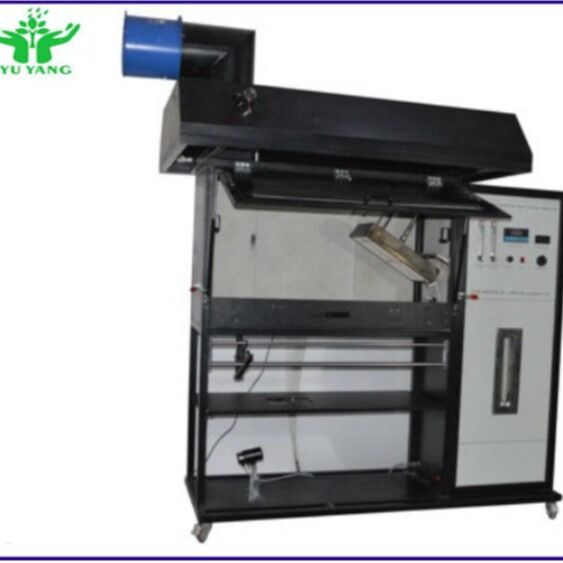

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 1
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 2
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 3

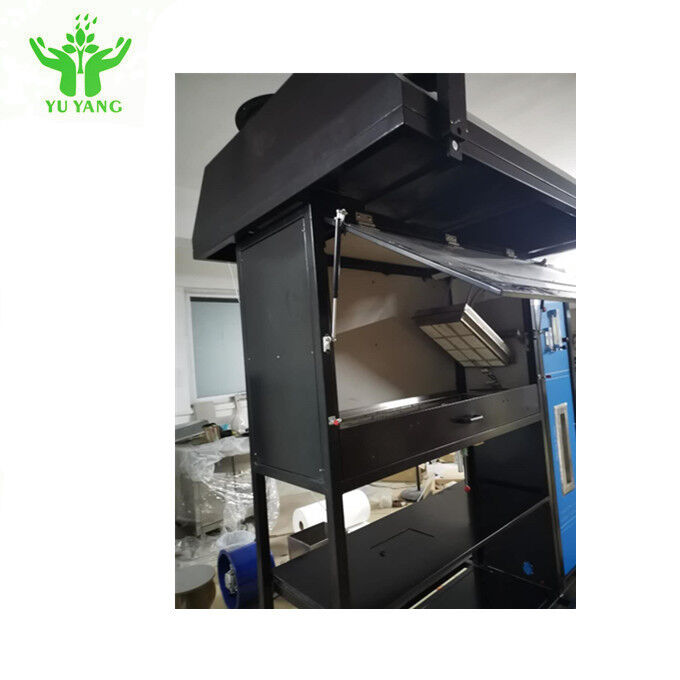

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 4
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 5
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 6
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 7
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 8
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 9
