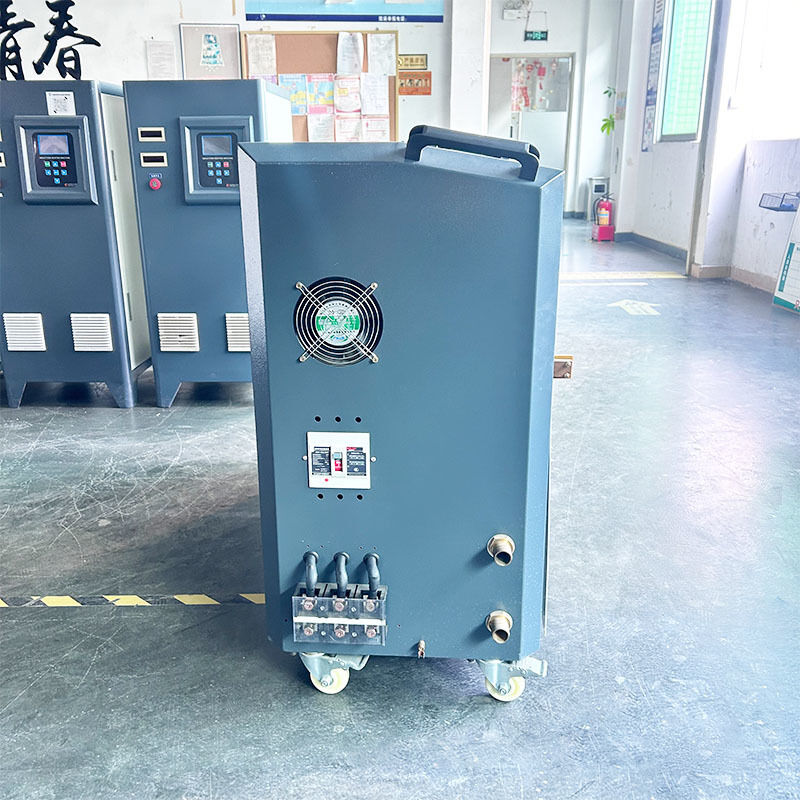

Steel Pipe Elbow Hot Forming Machine With Induction Heating
This advanced induction heating machine utilizes IGBT inverter technology for efficient steel pipe elbow hot forming applications, offering superior performance with significant energy savings and environmental benefits.
Key Characteristics
- IGBT inverter technology with automatic frequency tracking
- High-frequency heating with 70-80% energy savings compared to traditional methods
- Safe operation with secure voltage protection systems
- Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water shortage, phase failure, and overheating
- Environmentally friendly operation with no open flame, noise, or pollution
- Versatile applications including brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Advanced Features
Our high-frequency induction heating machine incorporates the latest electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free solutions for complex industrial processes.
Technical Advantages
- Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
- Advanced amorphous magnetic core material for complex metallic heating applications
- Efficient heating with 8-second warm-up and intelligent operation for production safety
- Stable magnetic field output ensures consistent long-term heating performance
- Monolithic shell design resistant to weak acids and alkalis
Technical Parameters
| Model 型号 | YYSQ-TC-120AB (Three phase) |
|---|
| Work Power 电源 | 340V-430V |
|---|
| Maximum Input Current 最大输入电流 | 180A |
|---|
| Output Power 输出功率 | 120KW |
|---|
| Fluctuating Frequency 震荡频率 | 5-20KHZ |
|---|
| Cooling Water Flow Rate 冷却水压水流 | 0.08-0.16Mpa 12L/Min |
|---|
| Water Temperature Protection 水温保护点 | 50°C |
|---|

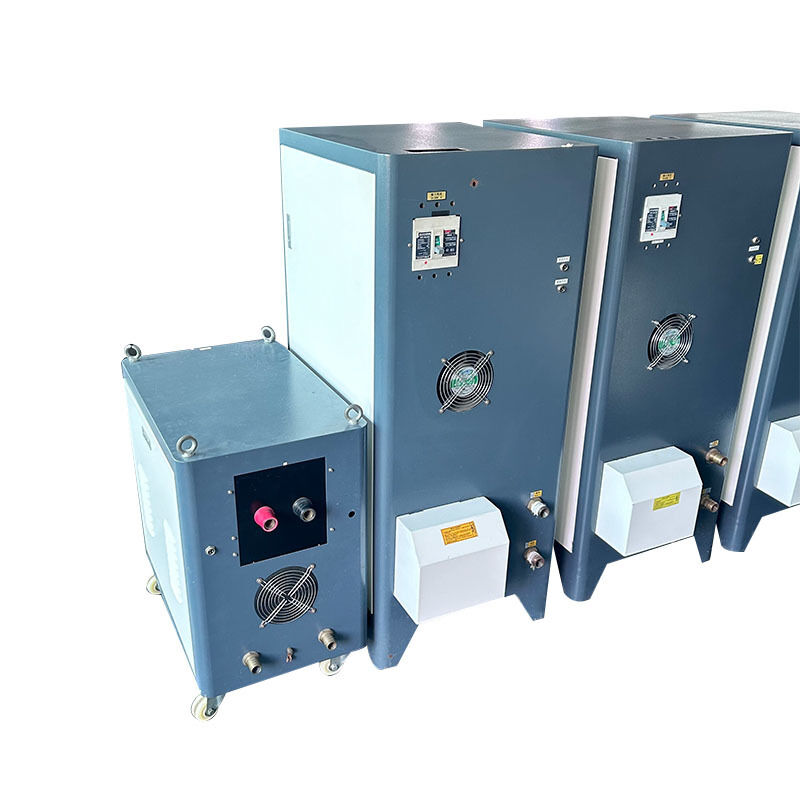

| Product Dimensions 产品尺寸 | Main Unit: 770*550*1510MM
Multiple Connect Transformer: 680*520*630MM |
|---|
| Net Weight 净重 | Main Unit: 145kg
Multiple Connect Transformer: 105kg |
|---|
Industrial Applications
- Metal brazing: copper-brass, tungsten steel-stainless steel, iron-copper, aluminum-copper
- Welding applications: glasses, fishing tools, hardware appliances
- Carbide tool welding: saw blades and teeth, cutting tools
- Precision welding: jewelry, watches, electronic components
- Industrial processes: motor rotor hot-cooperation, electrode soldering
- Specialized applications: metal implants, bulb electrodes, pipe welding
- Communication equipment: copper coaxial cable connector soldering
Company Information
Based in Guangdong, China since 2018, we serve global markets including South Asia, Eastern Asia, North America, Europe, and Oceania. Our 11-50 person team specializes in developing and manufacturing testing equipment including Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, and Wire/Cable Test Machines.
Quality Assurance
We guarantee product quality through pre-production sampling and final inspection before shipment, ensuring reliable performance for all our industrial testing equipment.
